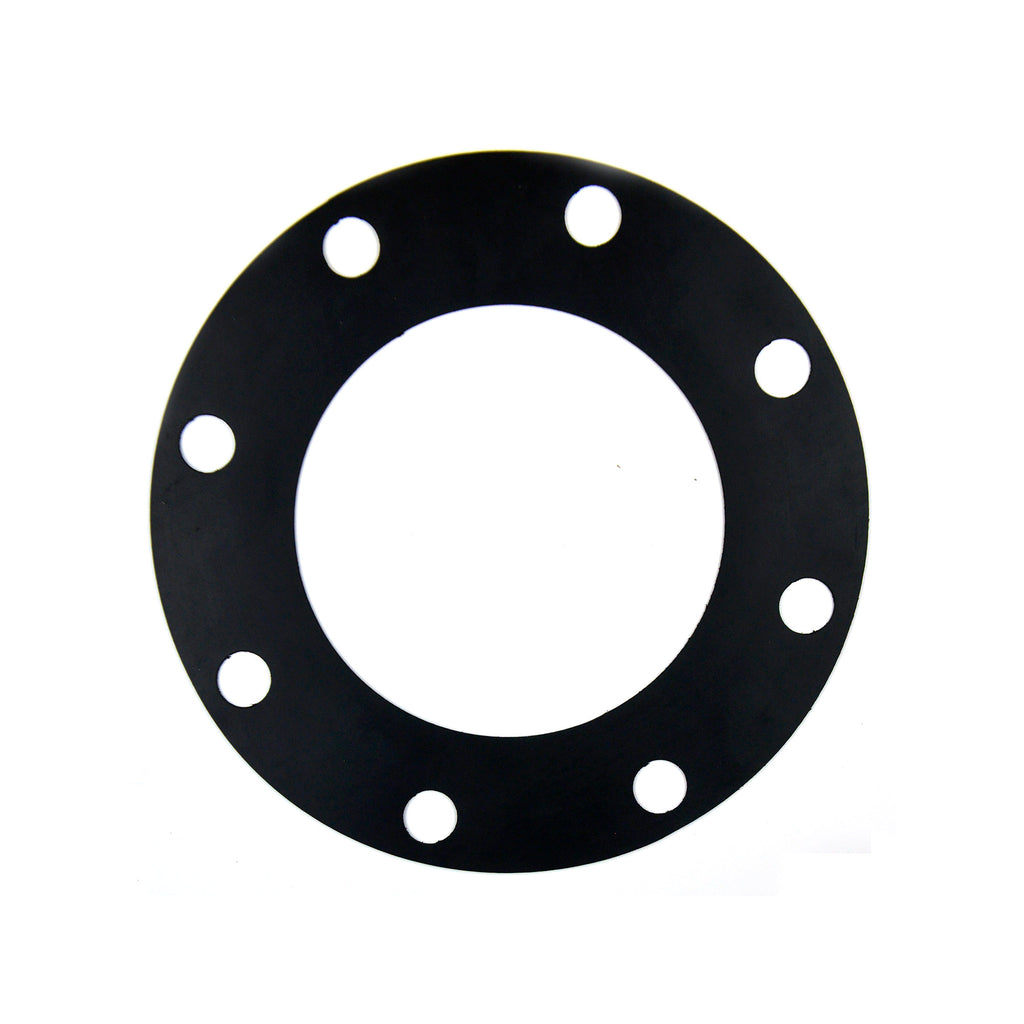

American Biltrite IM-262 Rubber Neoprene Black
Gasket Supply uses a commercial blend of Neoprene, which has a smooth plate finish.
Black Commercial Neoprene (CR) rubber sheet material is a good, economical, low temperature, and low pressure gasket sheet.
It is often used in non-critical water applications, light non-aggressive applications, and non-acidic low alkaline chemical applications. -It can also be used in approved extremely light non-critical oil resistant applications.
CAUTION:
- This material is not NSF-61 compliant or approved.
- -Do not use in heavy oil resistant or acidic and aggressive chemical applications.
Gasket sizes are based on ASME/ANSI Class 150lb dimensions. For Class 300lb gaskets, custom cut gaskets, or any sizing questions, please feel free to reach out to a specialist for assistance >>
WARNING: IT IS IMPORTANT TO CONSIDER THE PROPER MATERIAL GRADE WHEN REQUESTING A QUOTE OR WHEN USING IT AS SPEC FOR A JOB. THIS WILL SAVE COSTLY JOB SPECIFICATION ERRORS AND DOWN TIMES.
| Neoprene Black Gasket | Physical Properties |
| Color: | Black |
| HARDNESS (Shore A): | 60 |
| TENSILE (psi): | 500 nom. |
| ULTIMATE ELONGATION (%): | 300 nom. |
| TEMPERATURE RANGE (general guideline): | -200 to 1900F (-290 to 880C) |
